UFOPOWER 50kw107kwh-UFO-eBank-50107F

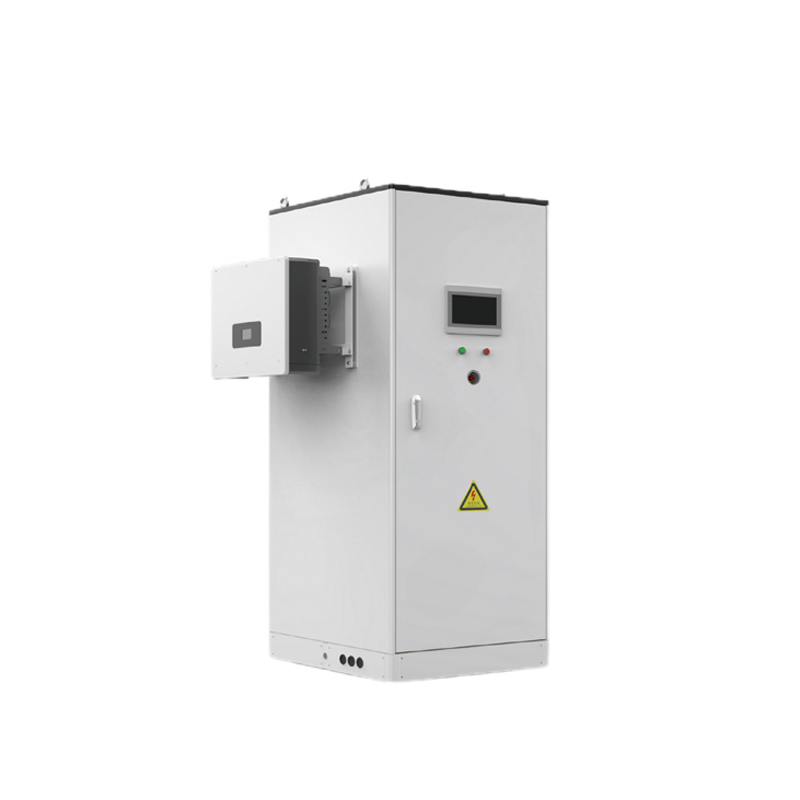

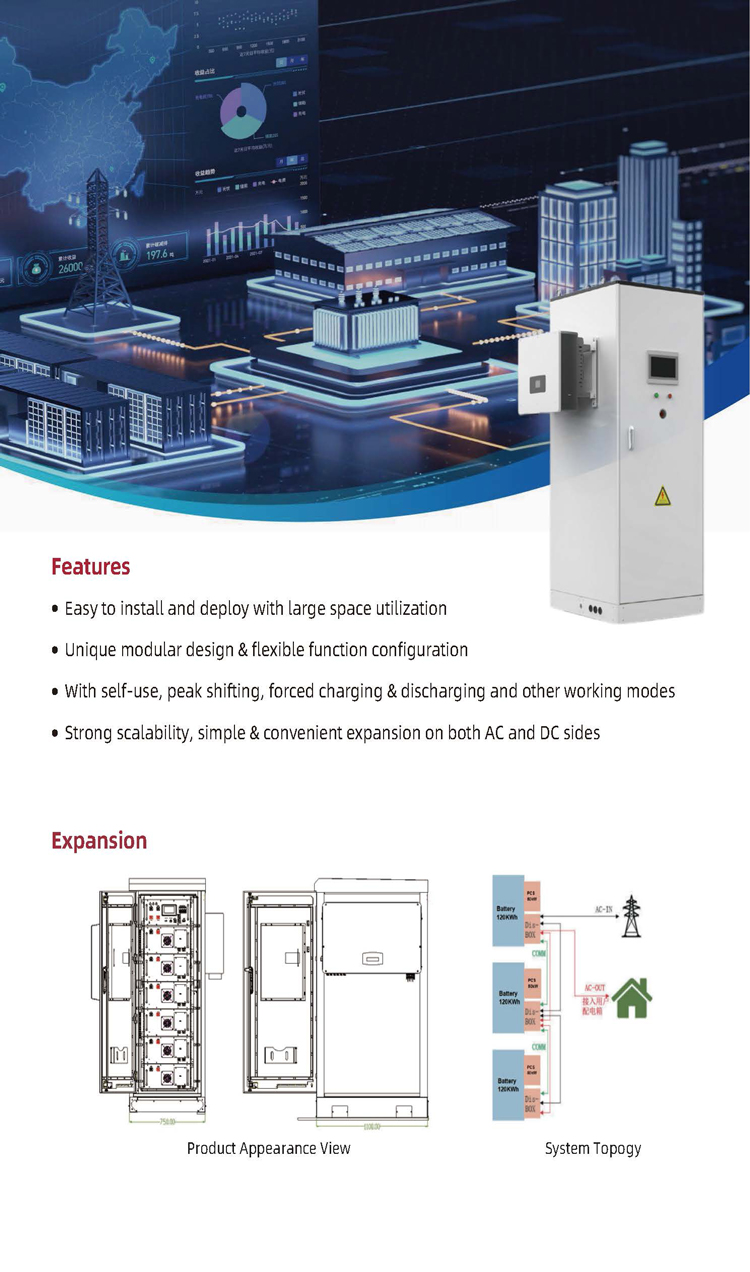

UFO-POWER 50kW/107kWh Energy Storage System (UFO-eBank-50107F). Engineered for rapid installation and deployment with an optimized footprint. Features a modular design for flexible configuration. Supports versatile operational modes including self-consumption, peak-shaving, and manual charge/discharge. Offers robust scalability with seamless expansion on both AC and DC sides.
ItemUFO-eBank-50120F
Battery Parameters
Number of battery packs6
Rated voltage384V
Voltage range336 ~ 438V
Rated energy107.5kWh
Max. continuous charging and discharging current140A
Discharge Depth90%
Cycle life8000 times
PV Parameters
Max. PV input power
96kW
Rated input voltage600VDC
Max. input voltage1000VDC
MPPT voltage range150 ~ 850VDC
PV input current60A + 60A + 60A
AC Side Parameters
AC rated input/output power50kVA
AC max. input/output power55kVA
AC rated input/output current76A
AC max. input/output current76A
Voltage3L/N/PE; 230/400V
Frequency50/60Hz
THDi≤3%
Power Factor0.8 leading to 0.8 lagging
System Parameters
Dimension (W × H × D)750 × 2000 × 1100mm
Weightabout 1200kg
CommunicationCAN / RS485 / WiFi / ETH
Design Life10 years+
ExpansionSupport in parallel up to 90kW / 252.9kWh
Enclosure protection ratingIP54
CoolingAir cooling
Environment temperature-30 ~ 50°C
Humidity10% ~ 95% RH
Altitude<2000m



ItemUFO-eBank-50120F
Battery Parameters
Number of battery packs6
Rated voltage384V
Voltage range336 ~ 438V
Rated energy107.5kWh
Max. continuous charging and discharging current140A
Discharge Depth90%
Cycle life8000 times
PV Parameters
Max. PV input power
96kW
Rated input voltage600VDC
Max. input voltage1000VDC
MPPT voltage range150 ~ 850VDC
PV input current60A + 60A + 60A
AC Side Parameters
AC rated input/output power50kVA
AC max. input/output power55kVA
AC rated input/output current76A
AC max. input/output current76A
Voltage3L/N/PE; 230/400V
Frequency50/60Hz
THDi≤3%
Power Factor0.8 leading to 0.8 lagging
System Parameters
Dimension (W × H × D)750 × 2000 × 1100mm
Weightabout 1200kg
CommunicationCAN / RS485 / WiFi / ETH
Design Life10 years+
ExpansionSupport in parallel up to 90kW / 252.9kWh
Enclosure protection ratingIP54
CoolingAir cooling
Environment temperature-30 ~ 50°C
Humidity10% ~ 95% RH
Altitude<2000m
