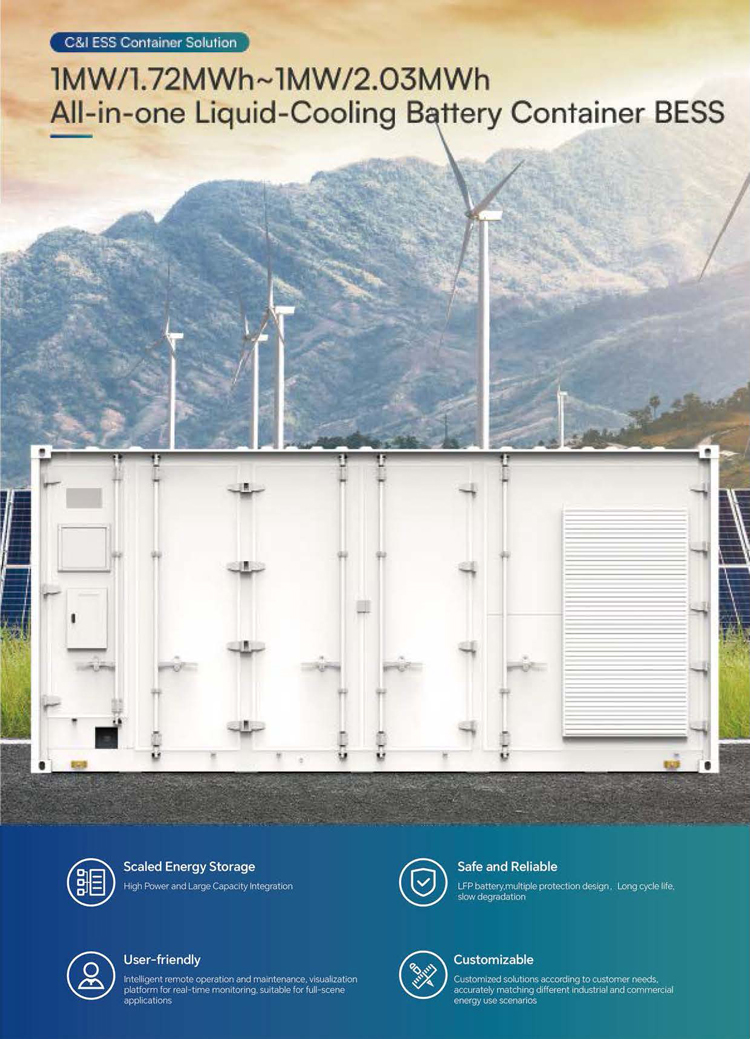

| Item | HC1720L | HC2000L |
| AC (On-grid) | ||
| Rated Power | 1MW | 1MW |
| Rated Voltage | 400V | 400V |
| Maximum Current | 1588A | 1588A |
| Wiring Method | 3P4L+PE | 3P4L+PE |
| Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Power Factor | 1 (Leading) ~ 1 (Lagging) | 1 (Leading) ~ 1 (Lagging) |
| THDi | ≤3% (Rated Power) | ≤3% (Rated Power) |
| AC (Off-grid) | ||
| Rated Power | 1MW | 1MW |
| Rated Voltage | 400V | 400V |
| Maximum Current | 1588A | 1588A |
| Wiring Method | 3P4L+PE | 3P4L+PE |
| Frequency | 50Hz/60Hz | 50Hz/60Hz |
| THDu | ≤2% (Linear Load) | ≤2% (Linear Load) |
| Battery | ||
| Battery Type | LiFePO4 | LiFePO4 |
| Battery Cell | 3.2V/280Ah | 3.2V/306Ah |
| Battery Pack Configuration | 1P48S | 1P52S |
| Battery Pack Quantity | 5 Packs/Cluster | 5 Packs/Cluster |
| Battery Cluster Quantity | 8 Clusters | 8 Clusters |
| Rated Current | 140A × 8 | 153A × 8 |
| Voltage Range | 648 ~ 864V | 702 ~ 936V |
| Rated Capacity | 1720.32kWh | 2036.736kWh |
| System | ||
| Weight | 22.5T | ≤30T |
| Dimensions (W/D/H) | 6058 × 2438 × 2896mm | 6608 × 2600 × 2896mm |
| Maximum Efficiency | ≥87% | ≥87% |
| Liquid Cooling Power | 45kW (Cooling), 9kW (Heating) | 45kW (Cooling), 16kW (Heating) |
| Temperature | -30 ~ 55℃ (De-rating over 45℃) | -30 ~ 55℃ (De-rating over 45℃) |
| Humidity | 5% ~ 95% RH (Non-Condensation) | 5% ~ 95% RH (Non-Condensation) |
| Protection Level | IP54 | IP54 |
| Anti-corrosion Rating | C4 | C4 |
| Cooling Method | Liquid Cooling | Liquid Cooling |
| Noise | ≤75dB | ≤75dB |
| Altitude | ≤2000m | ≤2000m |
| Display | HMI | HMI |
| Fire Protection | FM-200 | FM-200 |
| Communication | Ethernet | Ethernet |
| Certification | CE, UN38.3 | CE, UN38.3 |
| Charge / Discharge Rate | 0.5C | 0.5C |
| Depth Of Discharge | 90% | 90% |
| Cycle Life | ≥6000 Cycles (80% SOH @ Standard) | ≥6000 Cycles (80% SOH @ Standard) |
| Item | HC1720L | HC2000L |
| AC (On-grid) | ||
| Rated Power | 1MW | 1MW |
| Rated Voltage | 400V | 400V |
| Maximum Current | 1588A | 1588A |
| Wiring Method | 3P4L+PE | 3P4L+PE |
| Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Power Factor | 1 (Leading) ~ 1 (Lagging) | 1 (Leading) ~ 1 (Lagging) |
| THDi | ≤3% (Rated Power) | ≤3% (Rated Power) |
| AC (Off-grid) | ||
| Rated Power | 1MW | 1MW |
| Rated Voltage | 400V | 400V |
| Maximum Current | 1588A | 1588A |
| Wiring Method | 3P4L+PE | 3P4L+PE |
| Frequency | 50Hz/60Hz | 50Hz/60Hz |
| THDu | ≤2% (Linear Load) | ≤2% (Linear Load) |
| Battery | ||
| Battery Type | LiFePO4 | LiFePO4 |
| Battery Cell | 3.2V/280Ah | 3.2V/306Ah |
| Battery Pack Configuration | 1P48S | 1P52S |
| Battery Pack Quantity | 5 Packs/Cluster | 5 Packs/Cluster |
| Battery Cluster Quantity | 8 Clusters | 8 Clusters |
| Rated Current | 140A × 8 | 153A × 8 |
| Voltage Range | 648 ~ 864V | 702 ~ 936V |
| Rated Capacity | 1720.32kWh | 2036.736kWh |
| System | ||
| Weight | 22.5T | ≤30T |
| Dimensions (W/D/H) | 6058 × 2438 × 2896mm | 6608 × 2600 × 2896mm |
| Maximum Efficiency | ≥87% | ≥87% |
| Liquid Cooling Power | 45kW (Cooling), 9kW (Heating) | 45kW (Cooling), 16kW (Heating) |
| Temperature | -30 ~ 55℃ (De-rating over 45℃) | -30 ~ 55℃ (De-rating over 45℃) |
| Humidity | 5% ~ 95% RH (Non-Condensation) | 5% ~ 95% RH (Non-Condensation) |
| Protection Level | IP54 | IP54 |
| Anti-corrosion Rating | C4 | C4 |
| Cooling Method | Liquid Cooling | Liquid Cooling |
| Noise | ≤75dB | ≤75dB |
| Altitude | ≤2000m | ≤2000m |
| Display | HMI | HMI |
| Fire Protection | FM-200 | FM-200 |
| Communication | Ethernet | Ethernet |
| Certification | CE, UN38.3 | CE, UN38.3 |
| Charge / Discharge Rate | 0.5C | 0.5C |
| Depth Of Discharge | 90% | 90% |
| Cycle Life | ≥6000 Cycles (80% SOH @ Standard) | ≥6000 Cycles (80% SOH @ Standard) |
