UFO-POWER 60kWh PV+Battery ESS- HC60P-100A

UFO-POWER 60kWh PV+Battery ESS (Model: HC60P-100A)  Features an advanced LFP battery system with comprehensive safety protection, exceptional cycle life, and low capacity degradation. Designed with a modular architecture for flexible scalability. Supports multi-source integration (PV, diesel generator, grid, and load). Includes intelligent remote O&M with real-time monitoring capabilities.
ItemHC60P-100AHC60P-100B
AC (On-grid)
Rated Power50kW
Maximum Current72A
Rated Voltage400V
Wiring Method3P4L+PE
Frequency50Hz/60Hz
Power Factor0.8 (Leading) ~ 0.8 (Lagging)
THDi<5% (>30% Rated Power)
AC (Off-grid)
Rated Power50kW
Rated Voltage400V
Maximum Current72A
Wiring Method3P4L+PE
Frequency50Hz/60Hz
THDu<3% (Linear Load)
Battery
Battery TypeLiFePO4
Battery Cell3.2V/100Ah
Battery Pack Configuration1P16S1P32S
Battery Pack Quantity12 Packs/Cluster6 Packs/Cluster
Rated Current50A
Voltage Range518.4 ~ 691.2V
Rated Capacity61.44kWh
PV
Max. Usable PV Input Power19.2kW × 2
Max. Input Current32A × 2
Max. Short Circuit Current50A × 2
Max. Input Voltage850V
MPPT Voltage Range200V ~ 830V
Start-up Voltage250V
MPPT Number2
System
Weight<3T
Dimensions (W/D/H)Be Pending
Maximum Efficiency≥85%
Air Conditioning Power2kW (Cooling), 1kW (Heating)
Temperature-20℃ ~ 50℃ (De-Rating Over 45℃)
Humidity5% ~ 95% RH (Non-Condensation)
Protection LevelIP54
Anti-corrosion RatingC4
Cooling MethodAir Cooling
Noise≤75dB
Altitude2000m (>2000m Derating)
DisplayLCD
Fire ProtectionAerosol
CommunicationEthernet
CertificationCE, UN38.3
Charge/Discharge Rate0.5C
Depth Of Discharge90% DOD
Cycle Life≥6000 Cycles (80% SOH @ Standard)

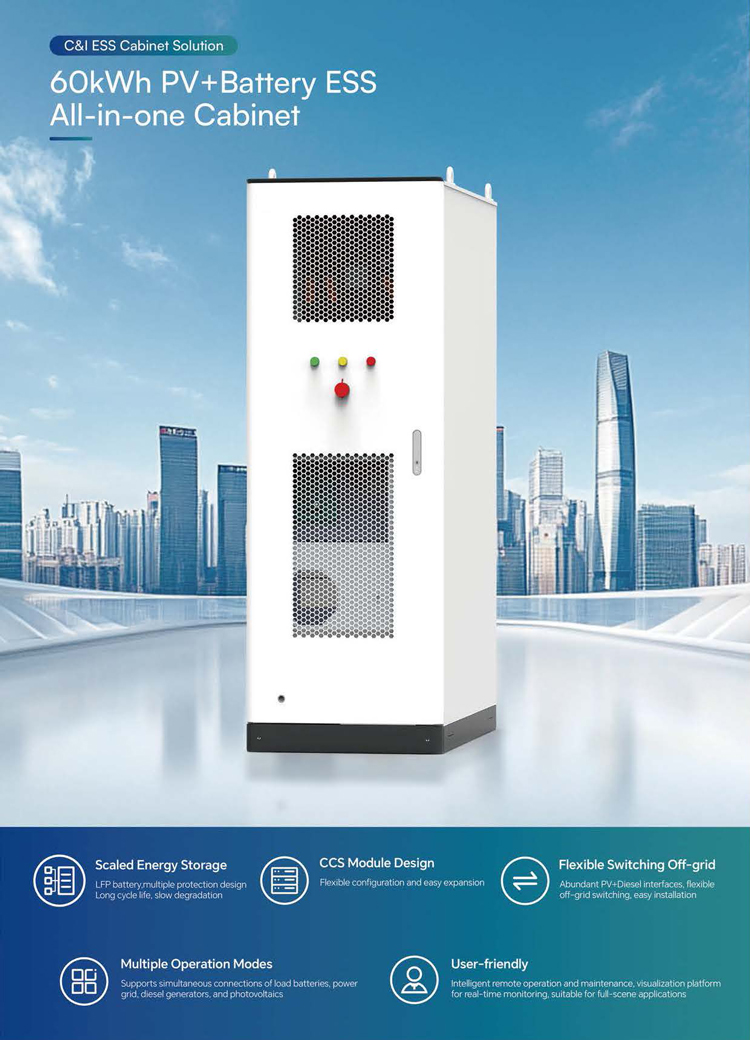

60kWh PV+Battery ESS- HC60P-100A2.jpg

ItemHC60P-100AHC60P-100B
AC (On-grid)
Rated Power50kW
Maximum Current72A
Rated Voltage400V
Wiring Method3P4L+PE
Frequency50Hz/60Hz
Power Factor0.8 (Leading) ~ 0.8 (Lagging)
THDi<5% (>30% Rated Power)
AC (Off-grid)
Rated Power50kW
Rated Voltage400V
Maximum Current72A
Wiring Method3P4L+PE
Frequency50Hz/60Hz
THDu<3% (Linear Load)
Battery
Battery TypeLiFePO4
Battery Cell3.2V/100Ah
Battery Pack Configuration1P16S1P32S
Battery Pack Quantity12 Packs/Cluster6 Packs/Cluster
Rated Current50A
Voltage Range518.4 ~ 691.2V
Rated Capacity61.44kWh
PV
Max. Usable PV Input Power19.2kW × 2
Max. Input Current32A × 2
Max. Short Circuit Current50A × 2
Max. Input Voltage850V
MPPT Voltage Range200V ~ 830V
Start-up Voltage250V
MPPT Number2
System
Weight<3T
Dimensions (W/D/H)Be Pending
Maximum Efficiency≥85%
Air Conditioning Power2kW (Cooling), 1kW (Heating)
Temperature-20℃ ~ 50℃ (De-Rating Over 45℃)
Humidity5% ~ 95% RH (Non-Condensation)
Protection LevelIP54
Anti-corrosion RatingC4
Cooling MethodAir Cooling
Noise≤75dB
Altitude2000m (>2000m Derating)
DisplayLCD
Fire ProtectionAerosol
CommunicationEthernet
CertificationCE, UN38.3
Charge/Discharge Rate0.5C
Depth Of Discharge90% DOD
Cycle Life≥6000 Cycles (80% SOH @ Standard)

60kWh PV+Battery ESS- HC60P-100A2.jpg
