UFO-POWER 3U High Voltage Rack Battery

The UFO-POWER 3U High-Voltage Rack Battery features a standard 19-inch design for effortless installation and utilizes advanced LiFePO4 technology. Engineered for reliability,it includes comprehensive protection via an intelligent BMS, supports flexible parallel expansion, and is fully compatible with Deye inverters. With a wide operating temperature range of -20°C to 55°C, this eco-friendly battery is the ideal long-cycle solution for both home and commercial solar storage.
ModelTH-R-HV20TH-R-HV25TH-R-HV30TH-R-HV35TH-R-HV40TH-R-HV46TH-R-HV51
Cell chemistryLiFePO4
Module energy(kWh)51.2
Module nominal voltage(V)5.12
Module capacity(Ah)100
Cell model/ Configuration3.2V100Ah
/64S1P		3.2V100Ah
/80S1P		3.2V100Ah
/96S1P		3.2V100Ah
/112S1P		3.2V100Ah
/128S1P		3.2V100Ah
/144S1P		3.2V100Ah
/160S1P
System nominal voltage(V)204.8256307.2358.4409.6460.8512
System operating voltage (V)185.6~227.2232~284278.4~340.8324.8~397.6371.2~454.4417.6~511.2464~568
System energy(kWh)20.4825.630.7235.8440.9646.0851.2
Charge/ Discharge Current(A)Recommend: 50
Max: 100
Working temperatureCharge: 0℃~55℃; Discharge: -20℃~55℃
Communication portCAN2.0/RS485/WIFI
Humidity5~95%RH Humidity
Altitude≤2000 m
IP rating of enclosureIP20
Dimension (W*D*H,mm)538*492*791538*492*941538*492*1091538*492*1241538*492*1391538*492*1541538*492*1691
Weight approximate(kg)195240285330375420465
Installation locationStorageRack Mounting
Storage temperature(℃)0℃~35℃
Recommend depth of discharge90%
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
CertificatesUN38.3, MSDS, CE-EMC

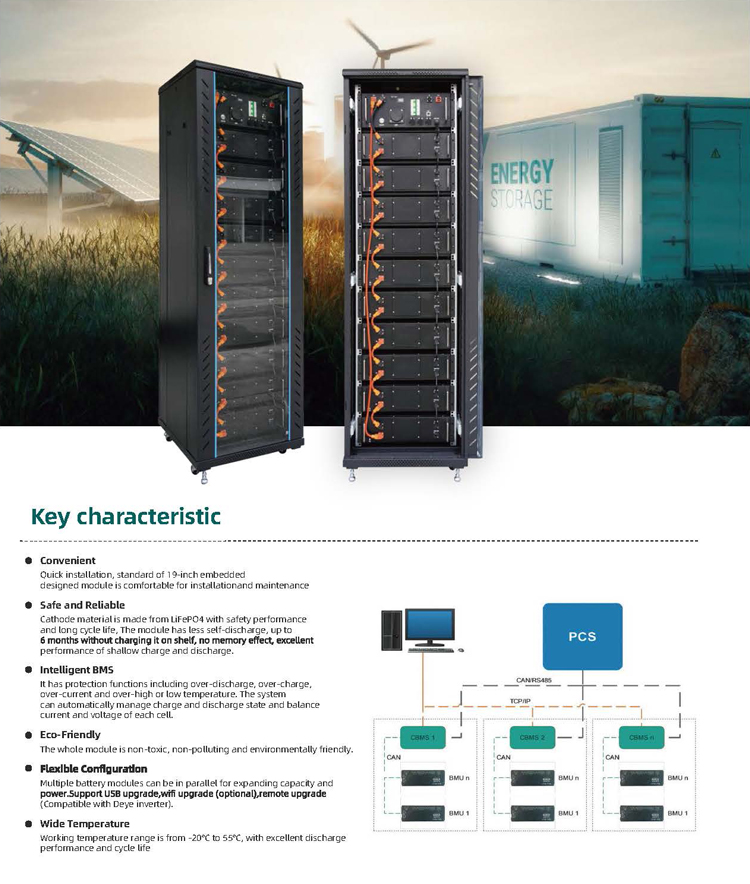

3U High Voltage Rack Battery3.jpg

ModelTH-R-HV20TH-R-HV25TH-R-HV30TH-R-HV35TH-R-HV40TH-R-HV46TH-R-HV51
Cell chemistryLiFePO4
Module energy(kWh)51.2
Module nominal voltage(V)5.12
Module capacity(Ah)100
Cell model/ Configuration3.2V100Ah
/64S1P		3.2V100Ah
/80S1P		3.2V100Ah
/96S1P		3.2V100Ah
/112S1P		3.2V100Ah
/128S1P		3.2V100Ah
/144S1P		3.2V100Ah
/160S1P
System nominal voltage(V)204.8256307.2358.4409.6460.8512
System operating voltage (V)185.6~227.2232~284278.4~340.8324.8~397.6371.2~454.4417.6~511.2464~568
System energy(kWh)20.4825.630.7235.8440.9646.0851.2
Charge/ Discharge Current(A)Recommend: 50
Max: 100
Working temperatureCharge: 0℃~55℃; Discharge: -20℃~55℃
Communication portCAN2.0/RS485/WIFI
Humidity5~95%RH Humidity
Altitude≤2000 m
IP rating of enclosureIP20
Dimension (W*D*H,mm)538*492*791538*492*941538*492*1091538*492*1241538*492*1391538*492*1541538*492*1691
Weight approximate(kg)195240285330375420465
Installation locationStorageRack Mounting
Storage temperature(℃)0℃~35℃
Recommend depth of discharge90%
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
CertificatesUN38.3, MSDS, CE-EMC

3U High Voltage Rack Battery3.jpg
