UFO-POWER 5U High Voltage Rack Battery

The UFO-POWER 5U High-Voltage Rack LiFePO4 battery is an advanced energy storage solution designed for both home and commercial solar applications. It features an intelligent BMS for comprehensive safety, low self-discharge, and an exceptionally long cycle life. With a wide operating temperature range of -20°C to 55°C, flexible capacity expansion, and seamless compatibility with Deye inverters, it offers a reliable, eco-friendly,and high-performance energy storage experience.
ModelTH-64280-R6TH-64280-R8TH-64280-R10TH-64280-R11TH-64280-R12
Nominal voltage384512640704768
Cell model/ Configuration3.2V280Ah(EVE)
/120S1P		3.2V280Ah(EVE)
/160S1P		3.2V280Ah(EVE)
/200S1P		3.2V280Ah(EVE)
/220S1P		3.2V280Ah(EVE)
/240S1P
Capacity(Ah)280
Rated energy(kWh)107.52143.36179.2197.12215.04
Weight(Approx)(kg)8201080135015001650
Dimension W*D*H(mm)1992*950*5501475*950*11001732*950*11001732*950*11001992*950*1100
Voltage range(Vdc)348~426464~568580~710638~781696~852
Max.charge/discharge current(A)140
Scalabilityup to 10 parallel
CommunicationRS485 (B) -BAT/RS485 (A) -PC/Canbus-Inverter
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Design life≥15年(25℃)
ProtectionBMS, Breaker
Operation temperature(℃)Charge: -10℃~50℃; Discharge: -20℃~50℃
Altitude(m)≤2000
Humidity<95%(non-condensing)
CertificatesUN38.3, MSDS, CE-EMC

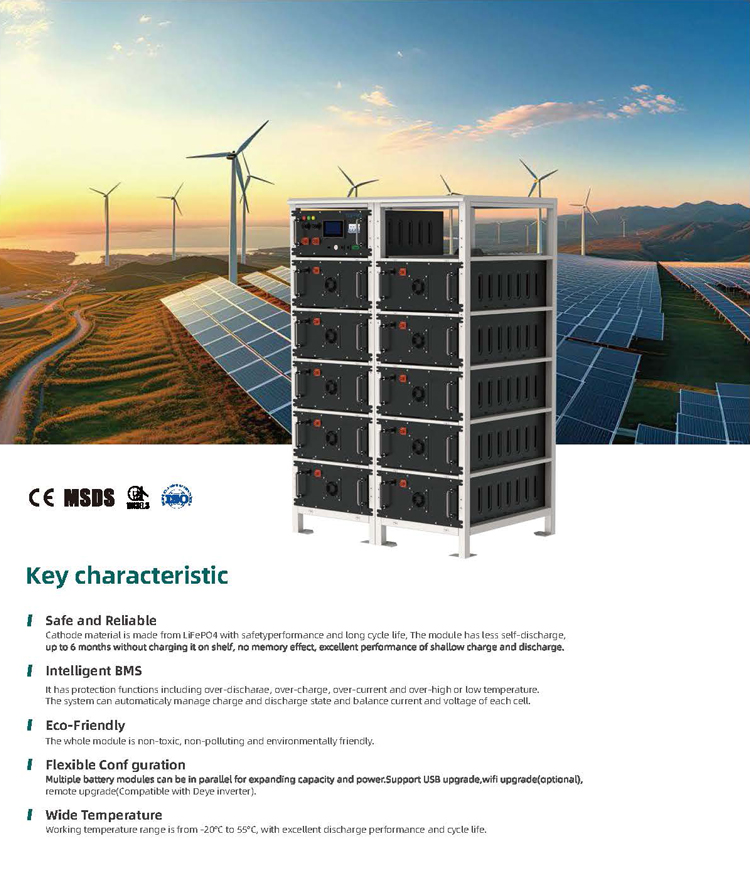

UFO-POWER 5U High Voltage Rack Battery1.jpg

ModelTH-64280-R6TH-64280-R8TH-64280-R10TH-64280-R11TH-64280-R12
Nominal voltage384512640704768
Cell model/ Configuration3.2V280Ah(EVE)
/120S1P		3.2V280Ah(EVE)
/160S1P		3.2V280Ah(EVE)
/200S1P		3.2V280Ah(EVE)
/220S1P		3.2V280Ah(EVE)
/240S1P
Capacity(Ah)280
Rated energy(kWh)107.52143.36179.2197.12215.04
Weight(Approx)(kg)8201080135015001650
Dimension W*D*H(mm)1992*950*5501475*950*11001732*950*11001732*950*11001992*950*1100
Voltage range(Vdc)348~426464~568580~710638~781696~852
Max.charge/discharge current(A)140
Scalabilityup to 10 parallel
CommunicationRS485 (B) -BAT/RS485 (A) -PC/Canbus-Inverter
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Design life≥15年(25℃)
ProtectionBMS, Breaker
Operation temperature(℃)Charge: -10℃~50℃; Discharge: -20℃~50℃
Altitude(m)≤2000
Humidity<95%(non-condensing)
CertificatesUN38.3, MSDS, CE-EMC

UFO-POWER 5U High Voltage Rack Battery1.jpg
