UFO POWER Liquid Cooling ESS (3.72MWh–5.01MWh capacity options). Features system response time <20ms, combining high power density with large-scale energy storage. Utilizes LFP battery technology with multi-layer protection for extended cycle life and minimal degradation. Supports intelligent remote O&M with real-time monitoring. Customizable for diverse industrial and commercial energy applications.
ItemHC3720LHC4180LHC5010L
Battery
Battery TypeLiFePO4LiFePO4LiFePO4
Battery Cell3.2V/280Ah3.2V/314Ah3.2V/314Ah
Battery Pack Configuration1P52S1P104S1P104S
Battery Pack Quantity8 Packs/Cluster4 Packs/Cluster4 Packs/Cluster
Battery Cluster Quantity10 Clusters10 Clusters12 Clusters
Rated Current140A × 10157A × 10157A × 12
Voltage Range1165 ~ 1500V1165 ~ 1500V1123.2 ~ 1497.6V
Rated Capacity3727.36kWh4179.96kWh5015.96kWh
System
Weight≤38T≤37T≤44T
Dimensions (W/D/H)6058 × 2438 × 2896mm
Maximum Efficiency≥87%
Temperature-30 ~ 45℃-30 ~ 45℃-30 ~ 50℃
Humidity≤95% RH (Non-Condensation)≤100% RH (Non-Condensation)≤100% RH (Non-Condensation)
Protection LevelIP55IP55IP54
Anti-corrosion RatingC4
Cooling MethodLiquid Cooling
Noise≤85dB≤70dB≤75dB
Altitude≤2000m≤2000m≤4000m
DisplayHMI
Fire ProtectionDry pipes with sprinklers, Aerosol (Optional)
CommunicationEthernet
CertificationUN38.3, UN3536, IEC 61000-6-2-4, IEC 62477, IEC 62619 & 63056IEC 62619, IEC 63056, IEC 62933 etc.UL 1973, UL 9540A, UL 9540, UN 38.3, compliant to NFPA 855, NEC 2023, NFPA 70E, etc.
Charge/Discharge Rate1C0.5C0.5C / 0.25C
Depth Of Discharge90%
Cycle Life≥6000 Cycles (80% SOH @ Standard)

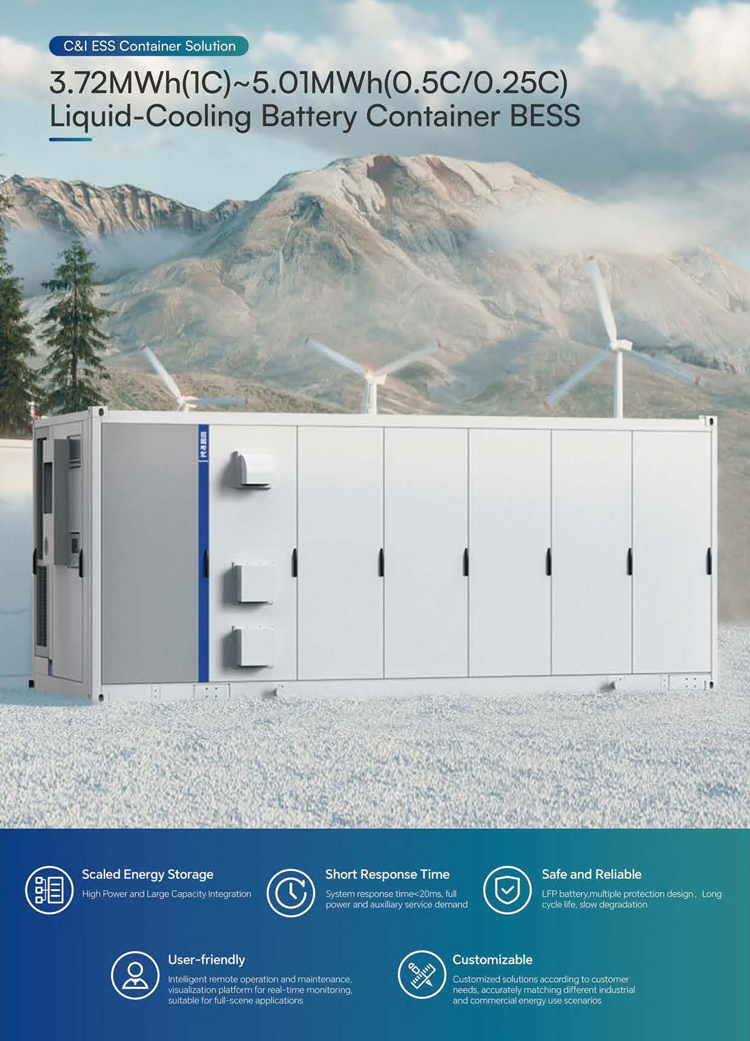

UFO-POWER 3.72MWh(1C)~5.01MWh-Liquid1.jpg
