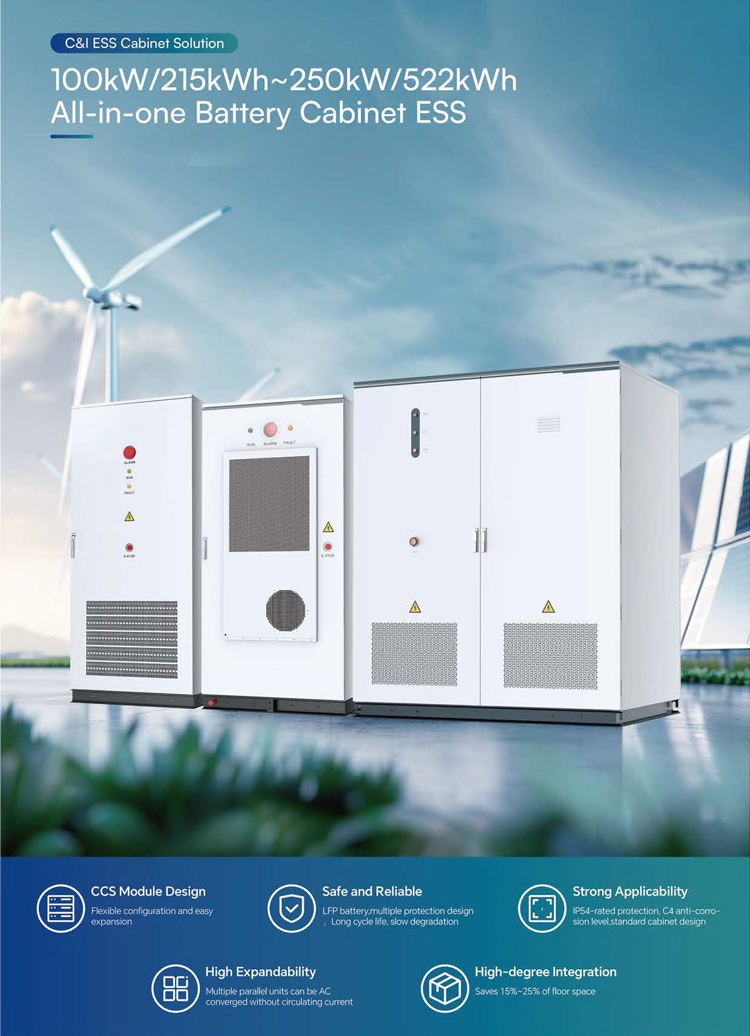

UFO-POWER All-in-one Battery Cabinet ESS-HC215L. 100kW/215kWh ~ 250kW/522kWh. CCS module design for flexible expansion. LFP battery with multiple protection, long cycle life & slow degradation. IP54, C4 anti-corrosion. High integration saves 15~25% floor space.
ItemHC215LHC233LHC261LHC522L
AC (On-grid)
Rated Power100kW110kW125kW250kW
Maximum Current158.76A174.65A198.47A396.94A
Rated Voltage400V
Wiring Method3P4L+PE
Frequency50Hz/60Hz
Power Factor1 (Leading) ~ 1 (Lagging)
THDi≤3% (Full Load)<3% (Rated Power)<2% (Rated Power)<3% (Rated Power)
AC (Off-grid)
Rated Power100kW110kW125kW250kW
Rated Voltage400V
Maximum Current158.76A174.65A198.47A396.94A
Wiring Method3P4L+PE
Frequency50Hz/60Hz
Unbalanced Load100%
THDu<3% (Linear Load)
Battery
Battery TypeLiFePO4
Battery Cell3.2V/280Ah3.2V/314Ah
Battery Pack Configuration1P48S1P52S
Battery Pack Quantity5 Packs5 Packs/Cluster × 2
Rated Current140A140A157A157A × 2
Voltage Range648 ~ 864V676 ~ 949V702 ~ 936V689 ~ 949V
Rated Capacity215.04kWh232.96kWh261.25kWh522.50kWh
System
Weight≤3000kg≤3500kg≤3500kg≤5000kg
Dimensions (W/D/H)1550 × 1400 × 2100mm1050 × 1350 × 2500mm1550 × 1400 × 2100mm1950 × 1300 × 2300mm
Maximum Efficiency≥87%
Temperature-30 ~ 55℃ (De-rating over 45℃)
Humidity5%~95% RH (Non-Condensation)
Protection LevelIP54
Anti-corrosion RatingC4
Cooling MethodLiquid Cooling
Noise≤75dB
Altitude≤2000m
DisplayLCD
Fire ProtectionFK-5-1-12
CommunicationLAN, RS485Ethernet / CAN / RS485 / 4G (optional)
CertificationCE, UN38.3
Charge/Discharge Rate0.5C
Depth Of Discharge90% DOD
Cycle Life≥6000 Cycles (80% SOH @ Standard)

UFO-POWER 100kW215kWh1.jpg

ItemHC215LHC233LHC261LHC522L
AC (On-grid)
Rated Power100kW110kW125kW250kW
Maximum Current158.76A174.65A198.47A396.94A
Rated Voltage400V
Wiring Method3P4L+PE
Frequency50Hz/60Hz
Power Factor1 (Leading) ~ 1 (Lagging)
THDi≤3% (Full Load)<3% (Rated Power)<2% (Rated Power)<3% (Rated Power)
AC (Off-grid)
Rated Power100kW110kW125kW250kW
Rated Voltage400V
Maximum Current158.76A174.65A198.47A396.94A
Wiring Method3P4L+PE
Frequency50Hz/60Hz
Unbalanced Load100%
THDu<3% (Linear Load)
Battery
Battery TypeLiFePO4
Battery Cell3.2V/280Ah3.2V/314Ah
Battery Pack Configuration1P48S1P52S
Battery Pack Quantity5 Packs5 Packs/Cluster × 2
Rated Current140A140A157A157A × 2
Voltage Range648 ~ 864V676 ~ 949V702 ~ 936V689 ~ 949V
Rated Capacity215.04kWh232.96kWh261.25kWh522.50kWh
System
Weight≤3000kg≤3500kg≤3500kg≤5000kg
Dimensions (W/D/H)1550 × 1400 × 2100mm1050 × 1350 × 2500mm1550 × 1400 × 2100mm1950 × 1300 × 2300mm
Maximum Efficiency≥87%
Temperature-30 ~ 55℃ (De-rating over 45℃)
Humidity5%~95% RH (Non-Condensation)
Protection LevelIP54
Anti-corrosion RatingC4
Cooling MethodLiquid Cooling
Noise≤75dB
Altitude≤2000m
DisplayLCD
Fire ProtectionFK-5-1-12
CommunicationLAN, RS485Ethernet / CAN / RS485 / 4G (optional)
CertificationCE, UN38.3
Charge/Discharge Rate0.5C
Depth Of Discharge90% DOD
Cycle Life≥6000 Cycles (80% SOH @ Standard)

UFO-POWER 100kW215kWh1.jpg
