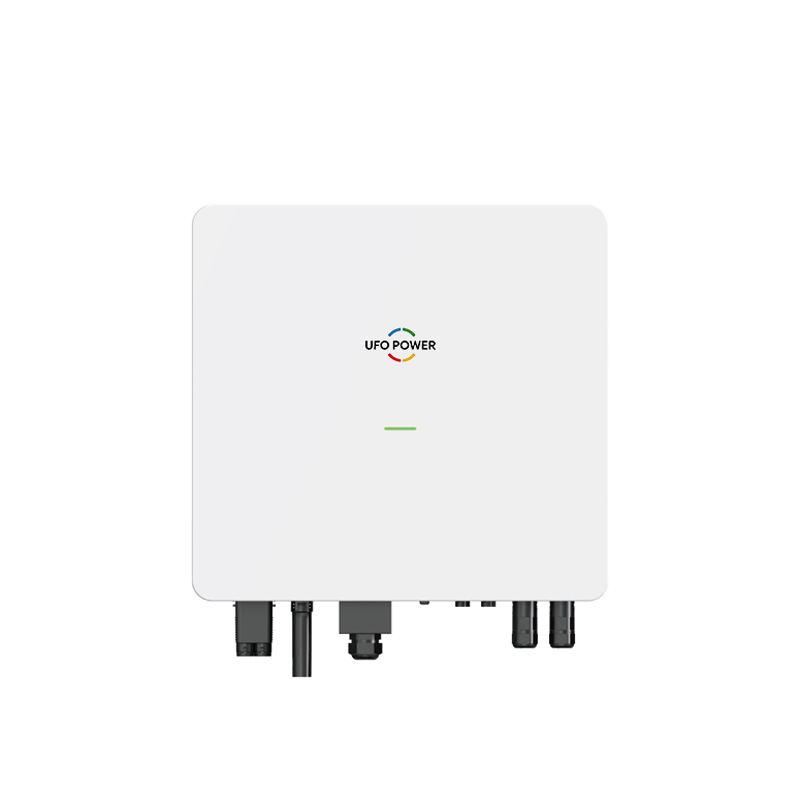

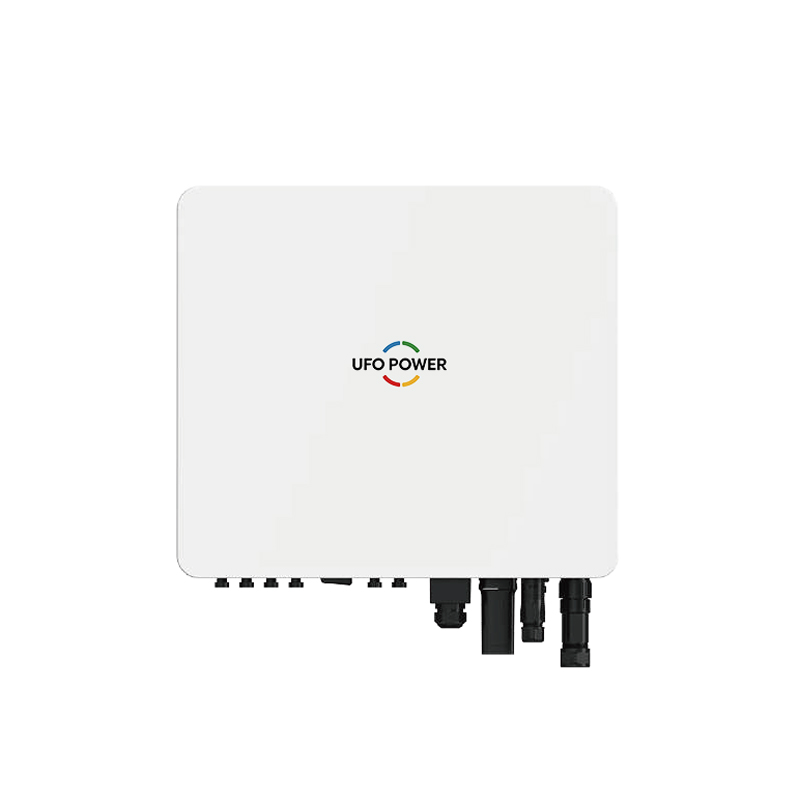

UFO-POWER 5-12kW Three Phase Inverter

UFO-POWER 5-12kW Three-Phase Inverter Series: Featuring advanced SiC technology and 3 MPPTs, this series supports 20A PV input current per MPPT, ensuring compatibility with high-power modules. Includes comprehensive AFCI and PID protection, dual independent battery ports, and seamless backup load bypass. Features 120% off-grid overload capability and full diesel generator support in an ultra-thin, sleek design.
Model NameUFO 5000T-LVUFO 8000T-LVUFO 10000T-LVUFO 12000T-LV
PV Input
Max. Input Power7500Wp12000Wp15000Wp18000Wp
Max. Input Voltage1000V
Starting Voltage160V
MPPT Voltage Range160V-960V
Nominal Voltage600V
Number of MPPT3
Max. Input Strings Per MPPT1/1/1
Max. Input Current20A/20A/20A
Short-Circuit Current24A/24A/24A
Battery Parameter
Battery TypeLithium-ion
Number of Battery Input2
Battery Voltage Range42-58V
Max. Charging/Discharging Current52.5A/52.5A85A/85A105A/105A125A/125A
Peak Charging/Discharging Current & Duration55A/55A-60s90A/90A-60s110A/110A-60s130A/130A-60s
Communication PortCAN-485
On-grid Parameter
Nominal Output Power5kW8kW10kW12kW
Max. Output Power6kW9.6kW12kW14.4kW
Max. Input Power from Grid10kW16kW20kW24kW
Max. Output Current9A15A18A22A
Max. Input Current from Grid15A24A30A36.4A
Nominal Voltage3/N/PE, 220/380Vac, 230/400Vac
Grid Voltage Range185-276V (P2N)
Thdi<3%
Off-grid Output
Nominal Output Power5kW8kW10kW12kW
Peak Power & Duration10kW-60s (10s)16kW-60s (10s)20kW-60s (10s)20kW-60s (10s)
Max. Output Current15A24A30A30A
Nominal Output Voltage3/N/PE, 220/380Vac, 230/400Vac
Thdu<3%
Generator PortSupport
Switching Time10ms
Efficiency
European Efficiency97.7% (TBD)
Max. Efficiency98.2% (TBD)
Max. Battery Charging/Discharging96% (TBD)
General Data
Size(W*H*D)460*650*165mm
WeightTBD
Noise<45db
Operating Temperature Range-25℃~60℃(~45℃ Derating)
TopologyIsolation
Cooling MethodSmart Cooling
Ingress Protection GradeIP65 (IP66)
DisplayAPP+LED
Monitoringwifi/4G/bluetooth/RS485
ParallelSupport
Warranty10 years
Certification
GridVDE-AR-N 4105; VDE 0126-1-1 EN 50549-1; G98, G100; CEI 0-21; AS/NZS4777.2 NRS 097-2-1;
CE-LVDIEC62109-1&2, IEC62040-1
CE-EMCEN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 EN 61000-4-16, EN 61000-4-18, EN 61000-4-29
