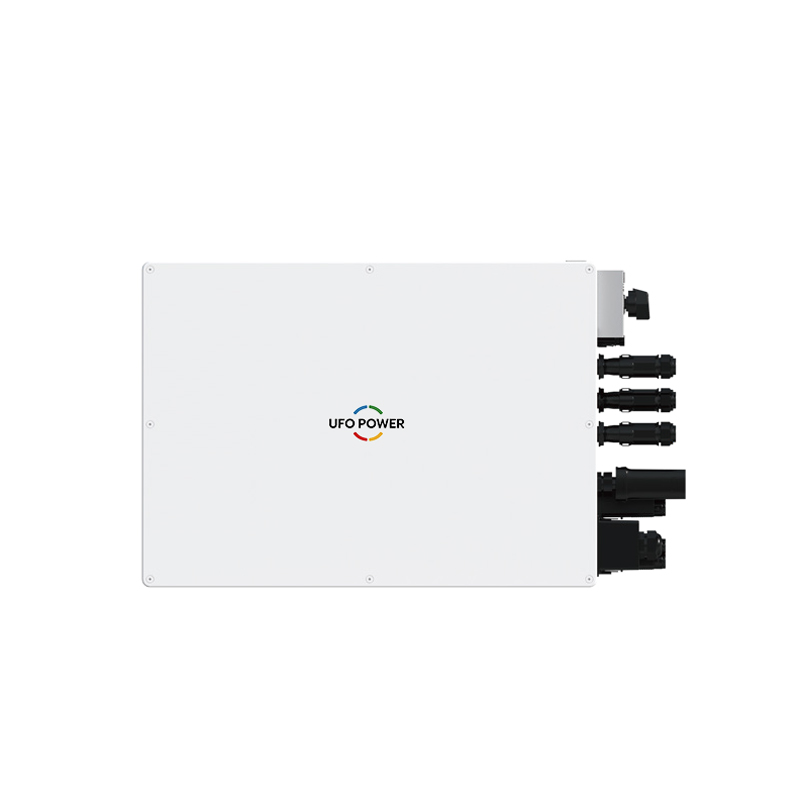

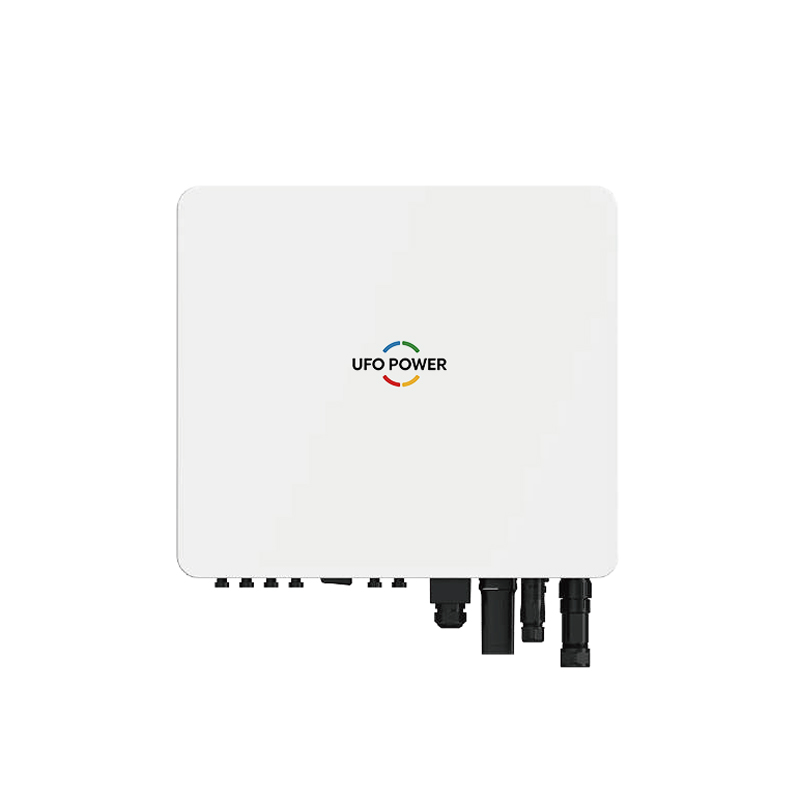

UFO-POWER 3-6kW Single Phase Inverter

The UFO-POWER 3-6kW Single-Phase Inverter is engineered for reliability, featuring an IP65-rated enclosure and an operational range of -25°C to +60°C. Designed with ultra-quiet cooling technology (<25dB), it ensures minimal environmental noise. It offers versatile connectivity options, including RS485, CAN, Bluetooth, WiFi, and 4G for seamlessmonitoring. This series is fully certified to international standards, including CE-LVD, CE-EMC, AS4777, VDE, and G99.
Model NameUFO 3000SUFO 3600SUFO 4000SUFO 4600SUFO 5000SUFO 6000S
Off-grid Output
Nominal Output Power3000W3600W4000W4600W5000W6000W
Nominal Voltage220V/230V/240V
Nominal Frequency50/60Hz
Nominal Output Current13.6A16.4A18.2A20.8A22.7A27.2A
Output THDu<2%
On-grid Parameter
Nominal Output Power3000W3600W4000W4600W5000W6000W
Max. Output Current13.6A16.4A18.2A20.8A22.7A27.2A
Nominal Grid Voltage220V/230V/240V
Max. Input Current from Grid16.4A22.7A27.2A
Grid Voltage Range184-276V
Frequency Range45-65Hz
PV input
Max. Input Power4500Wp6000Wp7500Wp9000Wp
Starting Voltage95V
Max. Input Voltage600V
MPPT Voltage Range80-550V
Full Load MPPT Voltage Range350-500V
Number of MPPT2
Max. Input String Per MPPT1
Nominal Input Voltage360V
Max. Input Current18A/18A
Battery Parameter
Battery TypeLithium-ion
Nominal Battery Voltage51.2V
Battery Voltage Range42-58V
Max. Charging Voltage≤60V
Max. Continuous Charging /Discharging current75A85A100A100A
Efficiency
Max. Efficiency97.5%97.8%98.0%
European Efficiency97.2%97.3%97.5%
Max. Battery Charging /Discharging Efficiency95.2%
General Data
Size(W*H*D)500mm*470mm*180mm
Weight21kg
Noise<25dB(A)
Operating Temperature Range-25℃~+60℃
Cooling MethodNatural cooling
Ingress Protection GradeIP65
MonitoringLED/APP/WIFI/4G/Bluetooth
Communication PortRS485/CAN/DRED/Dry contact/Parallel port
ProtectionDC Switch, PV Insulation Resistance Detection, Residual Current Monitoring, Anti-islanding Protection, Reverse Polarity Protection(PV&Battery) AC Short Circuit Protection, AC Overcurrent Protection, AC Overvoltage Protection:LEVEL III,PV&Battery:LEVEL II, Surge Protection,Lightning Protection:TYPE II
Certification
CE-LVDIEC 62109-1, IEC 62109-2, EN 62109-1, EN 62109-2
CE-EMCEN61000-6-1, EN61000-6-2,EN61000-6-3, EN61000-6-4
GridVDE-AR-N 4105, C10-11,G98, CEI 0-21, EN50549, NRS 097-2-1, AS 4777.2, R25,UNE217001,UNE217002,NTS 2.1

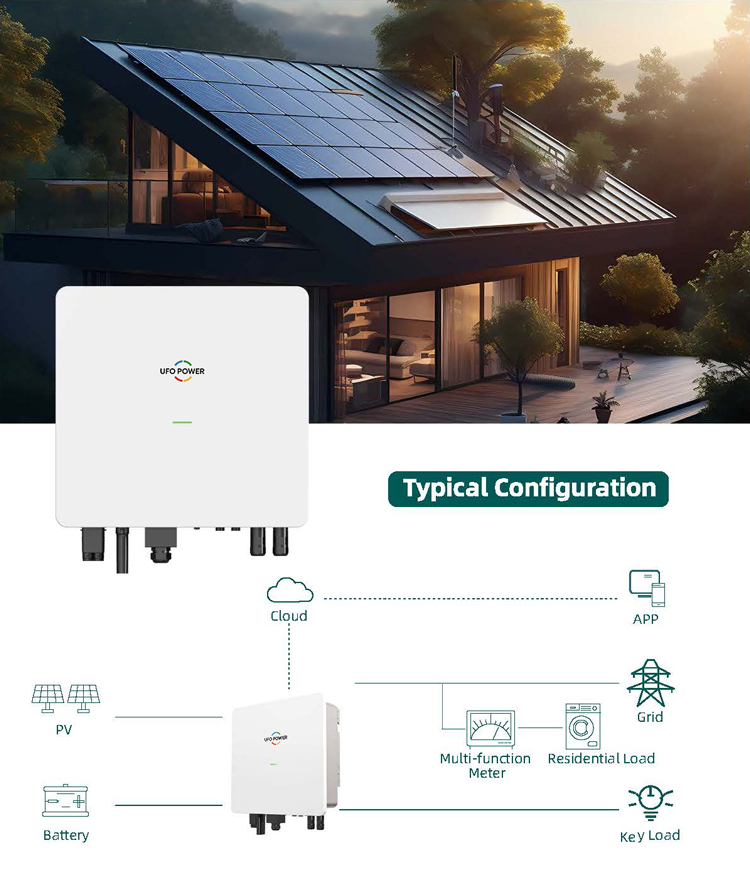

UFO-POWER 3-6kW Single Phase Inverter.jpg
