UFO-POWER Wall-mounted energy storage battery series

The UFO-POWER rack-mounted energy storage battery features a scalable 5-150kWh modular rack design. It is TUV, IEC, and UL certified, offering dual safety protectionvia BMS and a circuit breaker. With universal inverter compatibility, it is an ideal solution forboth commercial and home solar energy storage.
ModelTH-48100-WTH-48200-WTH-51100-WTH-51200-W
Rated voltage(Vdc)4851.2
Cell combination15S1P15S2P16S1P16S2P
Rated capacity(Ah)100200100100
Energy storage(kWh)4.89.65.1210.24
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Charge voltage(V)52.556
Max. charge current(A)100 (Optional 150/200A for 200Ah pack)
Max. discharge current(A)100 (Optional 150/200A for 200Ah pack)
Discharge cut-off voltage(VDC)40.843.2
Charge cut-off voltage(VDC)54.7558.4
Charge temperature0℃ ~ 50℃,60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
IP classIP20
Material systemLiFePO4
Case materialMetal
Case typeWall Mount
Product dimension L*W*H(mm)580*390*185690*485*226580*390*185690*485*226
Package dimension L*W*H(mm)660*450*240850*570*285660*450*240850*570*285
Net weight(kg)42854488
Gross weight(kg)47954998
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDS, CE-EMCUN38.3, MSDS, CE-EMC, IEC62619, UL1973UN38.3, MSDS, CE-EMC

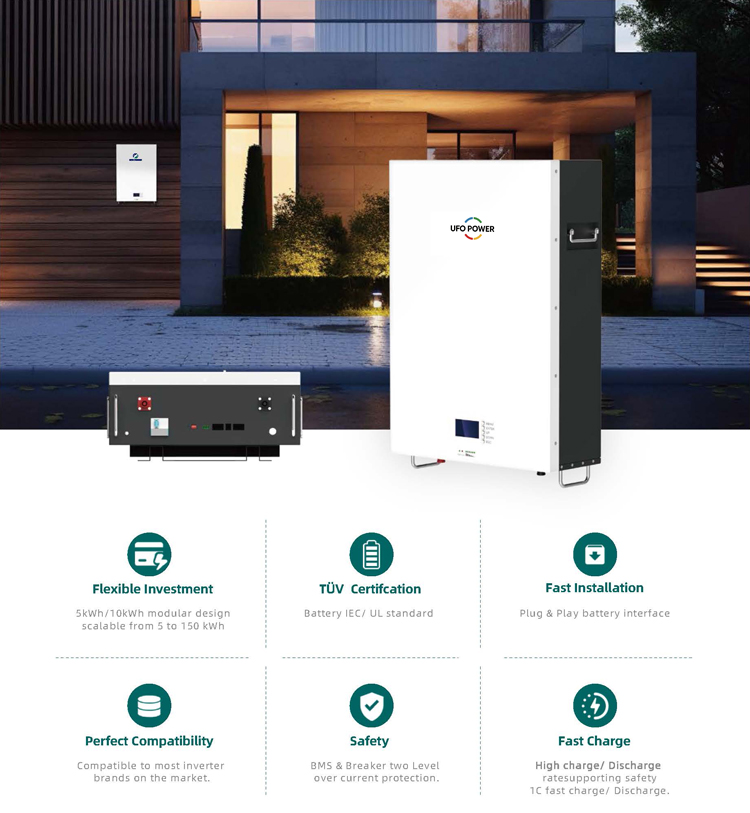

Wall-mounted energy storage battery series2.jpg

ModelTH-48100-WTH-48200-WTH-51100-WTH-51200-W
Rated voltage(Vdc)4851.2
Cell combination15S1P15S2P16S1P16S2P
Rated capacity(Ah)100200100100
Energy storage(kWh)4.89.65.1210.24
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Charge voltage(V)52.556
Max. charge current(A)100 (Optional 150/200A for 200Ah pack)
Max. discharge current(A)100 (Optional 150/200A for 200Ah pack)
Discharge cut-off voltage(VDC)40.843.2
Charge cut-off voltage(VDC)54.7558.4
Charge temperature0℃ ~ 50℃,60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
IP classIP20
Material systemLiFePO4
Case materialMetal
Case typeWall Mount
Product dimension L*W*H(mm)580*390*185690*485*226580*390*185690*485*226
Package dimension L*W*H(mm)660*450*240850*570*285660*450*240850*570*285
Net weight(kg)42854488
Gross weight(kg)47954998
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDS, CE-EMCUN38.3, MSDS, CE-EMC, IEC62619, UL1973UN38.3, MSDS, CE-EMC

Wall-mounted energy storage battery series2.jpg
