UFO-POWER Three Phase ESS Series

UFO-POWER Three-Phase ESS features flexible 9.6kWh stackable battery expansion, up to 98.4% efficiency, AFCI active arc safety protection & plug-and-play design, enabling a fast 10-minute setup for reliable three-phase solar energy storage.
ModelTG-ESS-9HV-S1TG-ESS-9HV-S2
PV Specifications
Max. PV input power15000W
Nominal PV voltage/ Voc600Voc
Start-up/ Min. operation voltage180Vdc
MPPT voltage range150-950Vdc
No. of MPPTs/ Strings2(1/2)
Max. PV input current48A (16A+32A)
Input / Output(AC)
Max. AC input power from grid20500VA
Rated AC output power10000W
Max. AC output apparent power11000VA
Rated/ Max. AC output current15.2A/16.7A
Rated AC voltage3/N/PE 220V/380V 230V/400V 240V/415V
AC voltage range270-480V
AC typeThree phase
Battery Data
Rated voltaged(Vdc)192384
Energy storage(kWh)9.619.2
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Charge voltage(V)219438
Max. charge current(A)50
Max. discharge current(A)50
Discharge cut-off voltage(VDC)168336
Charge cut-off voltage(VDC)210420
Charge temperature0℃ ~ 50℃,60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
IP classIP65
Case typeAll in One Stack
Product dimension L*W*H(mm)Inverter high-voltage box: 800*210*775/Battery box: 800*188*512(single)
Package dimension L*W*H(mm)Inverter high-voltage box: 1115*300*880
Battery box: 920*310*735(single)
(Packaging size Including accessories)		Inverter high-voltage box: 1115*300*880
Battery box: 920*310*735(single)*2
(Packaging size Including accessories)
Net weight(kg)Inverter high-voltage box: 65kg
Battery box: 95kg Accessory box: 9kg		Inverter high-voltage box: 65kg
Battery box: 95kg*2 Accessory box: 9kg
Gross weight(kg)Inverter high-voltage box: 76kg (Including accessories) /Battery box: 105kg
Protocol(Optional)RS485/RS232/WLAN Optional
MonitoringBluetooth/WLAN Optional
CertificatesEN, IEC, NRS, G99, UN38.3, MSDS, CE

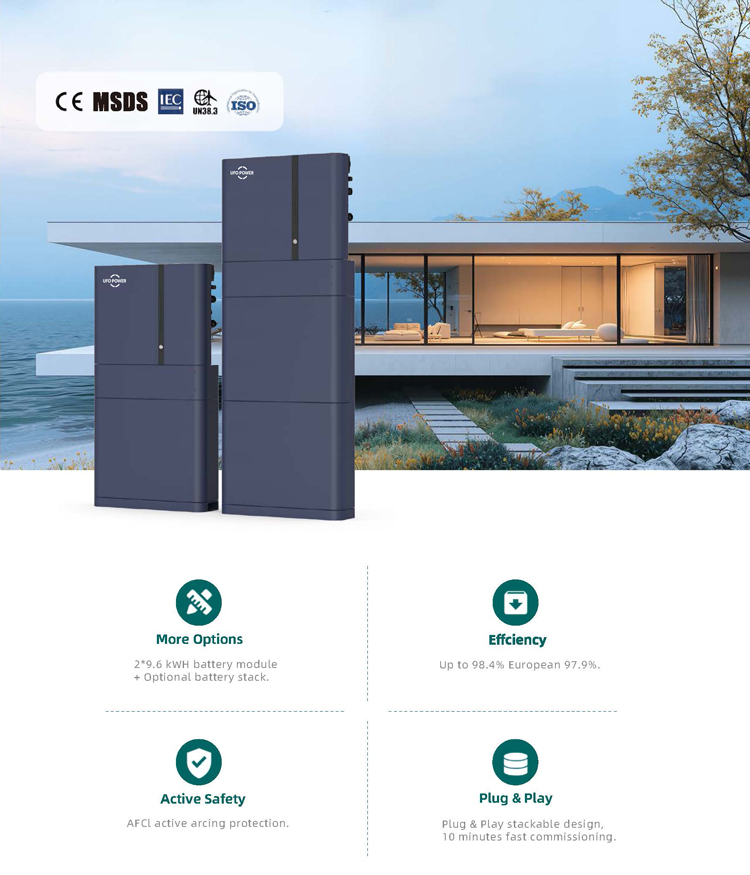

Three Phase ESS Series3.jpg
