UFO-POWER Low voltage mobile energy storage battery series

The UFO-POWER low-voltage portable energy storage battery features high-quality Grade A cells and a 10,000+ cycle lifespan. Designed for convenience, it offers perfectinverter compatibility, a compact portable design, and plug-and-play installation, allbacked by dual-level BMS safety protection. This portable home solar battery system isfully certified with CE, UN38.3, and ISO standards.
ModelTH-51100-MTH-51205-MTH-51314-M
Rated voltage(Vdc)51.2
Cell combination(S1P)16
Rated capacity(Ah)100205314
Energy storage(kWh)5.1210.516
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Charge voltage(V)56
Max. charge current(A)100 (Optional 150/200A for 205/280AH pack)
Max. discharge current(A)100 (Optional 150/200A for 205/280AH pack)
Discharge cut-off voltage(VDC)43.2
Charge cut-off voltage(VDC)58.4
Charge temperature0℃ ~ 50℃,60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
IP classIP20
Material systemLiFePO4
Case materialMetal
Case typeMobile Power
Product dimension L*W*H(mm)612*370*190622*520*227766*614*221
Package dimension L*W*H(mm)712*535*298722*695*328866*695*328
Net weight(kg)5592122
Gross weight(kg)60112145
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDSUN38.3, MSDS, CE-EMC

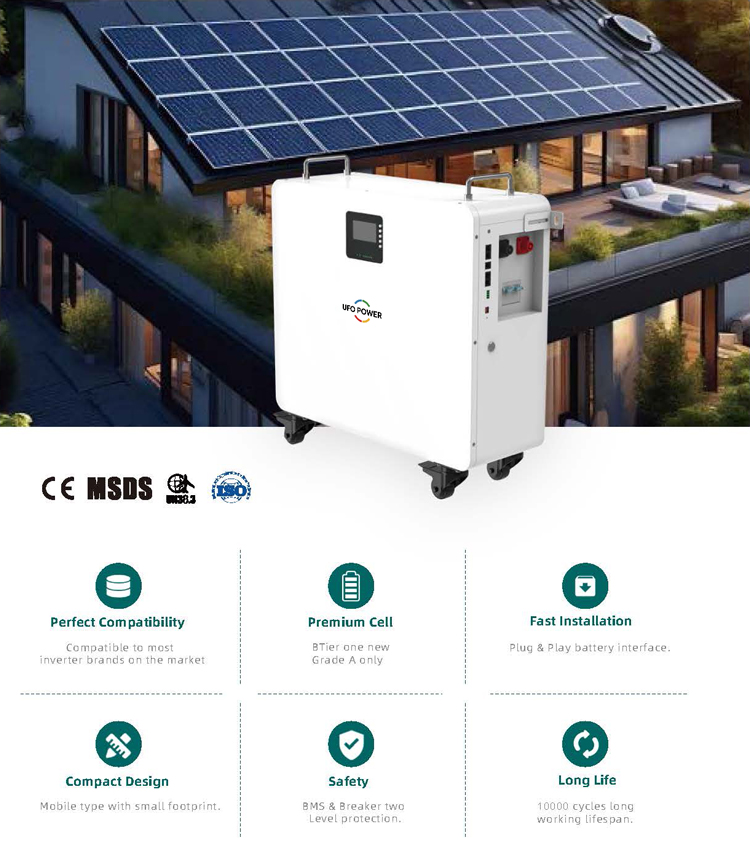

UFO-POWER Low voltage mobile energy storage battery series2.jpg

ModelTH-51100-MTH-51205-MTH-51314-M
Rated voltage(Vdc)51.2
Cell combination(S1P)16
Rated capacity(Ah)100205314
Energy storage(kWh)5.1210.516
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Charge voltage(V)56
Max. charge current(A)100 (Optional 150/200A for 205/280AH pack)
Max. discharge current(A)100 (Optional 150/200A for 205/280AH pack)
Discharge cut-off voltage(VDC)43.2
Charge cut-off voltage(VDC)58.4
Charge temperature0℃ ~ 50℃,60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃,60 ± 25% Relative Humidity
IP classIP20
Material systemLiFePO4
Case materialMetal
Case typeMobile Power
Product dimension L*W*H(mm)612*370*190622*520*227766*614*221
Package dimension L*W*H(mm)712*535*298722*695*328866*695*328
Net weight(kg)5592122
Gross weight(kg)60112145
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDSUN38.3, MSDS, CE-EMC

UFO-POWER Low voltage mobile energy storage battery series2.jpg
