UFO-POWER All in One System 3kw/5kw/10kw

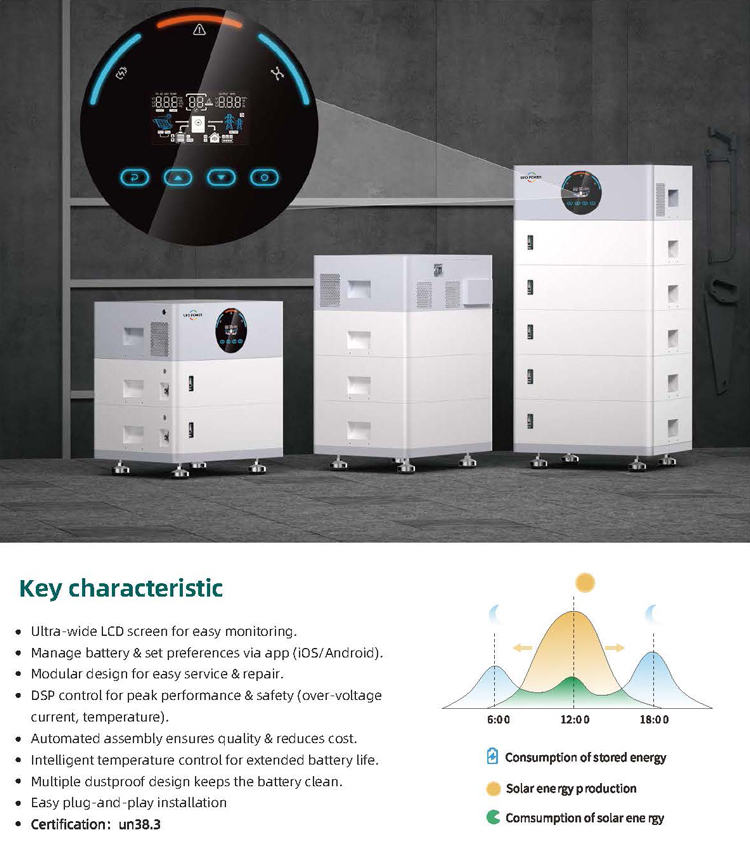

The UFO-POWER All-in-One System, available in 3kW, 5kW, and 10kW capacities,features a large LCD display, remote app control, and a modular design for easymaintenance. With DSP-based multi-layer safety protection, intelligent temperatureregulation, and a dustproof design, it offers plug-and-play installation. Certified toUN38.3 standards, it delivers stable and efficient solar energy storage for your home.
UFO-03KL1-025S1UFO-05KL1-050S1UFO-10KL1-100S2
PV (DC Input)
Recommended max. PV input power6000W8000W16000W
Max. input voltage(Voc)500V
MPPT operating voltage range85V - 450V (@85V start up)
Number of MPPT112
Max. number of input strings per MPPT1
Max. input current per MPPT15A27A27/27A
Max. short-circuit current per MPPT18A35A35/35A
Grid (AC Input)
Max input power6000w10000W16000W
Max input current26A45A78A
Rated grid voltage220/230/240Vac
Rated grid frequency50/60Hz
Acceptable range170-280Vac(For UPS); 90-280Vac (For Home Appliances)170-280Vac(For UPS); 90-280Vac (For Home Appliances)170-280Vac(For UPS); 90-280Vac (For Home Appliances)
Battery Parameters (Bidirection)
Battery typeLiFePO4
Battery voltage range40~60Vdc
Max. charge/discharge current50A/50A100A/100A200A/200A
Nominal Battery Energy/pack Quantity2.56kWh5.12kWh2*5.12kwh
Battery Capacity50AH100AH100AH
Max Parallel Quantity/Energy4 / 10.24KWH4 / 20.48KWH4 / 20.48KWH
Back-up (AC Output)
Rated output power3000W/3000VA5000W/5000VA10000W/10000VA (Twin output)
Rated output current13.6A22.7A44.5A
Rated output voltage/Frequency220/230/240Vac 50/60Hz
Parallel CapacityMax. 12Units
Surge power6000VA 5s10000VA 5s20000VA 5s
THDi(@linear load)<3%
Switching time10ms typical (For UPS)20ms typical(For Home Appliances)
Efficiency
Peak efficiency95%98%98%
Max.MPPT efficiency99.9%
Protection
Inner protection√Output short-circuit protection;Output overvoltage protection
Surge protectionPV:Type Ⅰ,AC:TypeⅢ
IP ratingIP54
General Parameters
Operating temperature range-10℃~55℃
Relative humidity range5%~95%
Warranty Period3 Years

All in One System 1.jpg

UFO-03KL1-025S1UFO-05KL1-050S1UFO-10KL1-100S2
PV (DC Input)
Recommended max. PV input power6000W8000W16000W
Max. input voltage(Voc)500V
MPPT operating voltage range85V - 450V (@85V start up)
Number of MPPT112
Max. number of input strings per MPPT1
Max. input current per MPPT15A27A27/27A
Max. short-circuit current per MPPT18A35A35/35A
Grid (AC Input)
Max input power6000w10000W16000W
Max input current26A45A78A
Rated grid voltage220/230/240Vac
Rated grid frequency50/60Hz
Acceptable range170-280Vac(For UPS); 90-280Vac (For Home Appliances)170-280Vac(For UPS); 90-280Vac (For Home Appliances)170-280Vac(For UPS); 90-280Vac (For Home Appliances)
Battery Parameters (Bidirection)
Battery typeLiFePO4
Battery voltage range40~60Vdc
Max. charge/discharge current50A/50A100A/100A200A/200A
Nominal Battery Energy/pack Quantity2.56kWh5.12kWh2*5.12kwh
Battery Capacity50AH100AH100AH
Max Parallel Quantity/Energy4 / 10.24KWH4 / 20.48KWH4 / 20.48KWH
Back-up (AC Output)
Rated output power3000W/3000VA5000W/5000VA10000W/10000VA (Twin output)
Rated output current13.6A22.7A44.5A
Rated output voltage/Frequency220/230/240Vac 50/60Hz
Parallel CapacityMax. 12Units
Surge power6000VA 5s10000VA 5s20000VA 5s
THDi(@linear load)<3%
Switching time10ms typical (For UPS)20ms typical(For Home Appliances)
Efficiency
Peak efficiency95%98%98%
Max.MPPT efficiency99.9%
Protection
Inner protection√Output short-circuit protection;Output overvoltage protection
Surge protectionPV:Type Ⅰ,AC:TypeⅢ
IP ratingIP54
General Parameters
Operating temperature range-10℃~55℃
Relative humidity range5%~95%
Warranty Period3 Years

All in One System 1.jpg
