Shop UFO POWER 23000mAh 1021.2Wh 44.2V 25C semi‑solid‑state FPV drone battery. 12S high‑rate NMC UAV battery with 300Wh/kg energy density, 500 cycles, -20~60℃ wide temp, ideal for 18‑inch FPV racing & heavy‑lift drones.

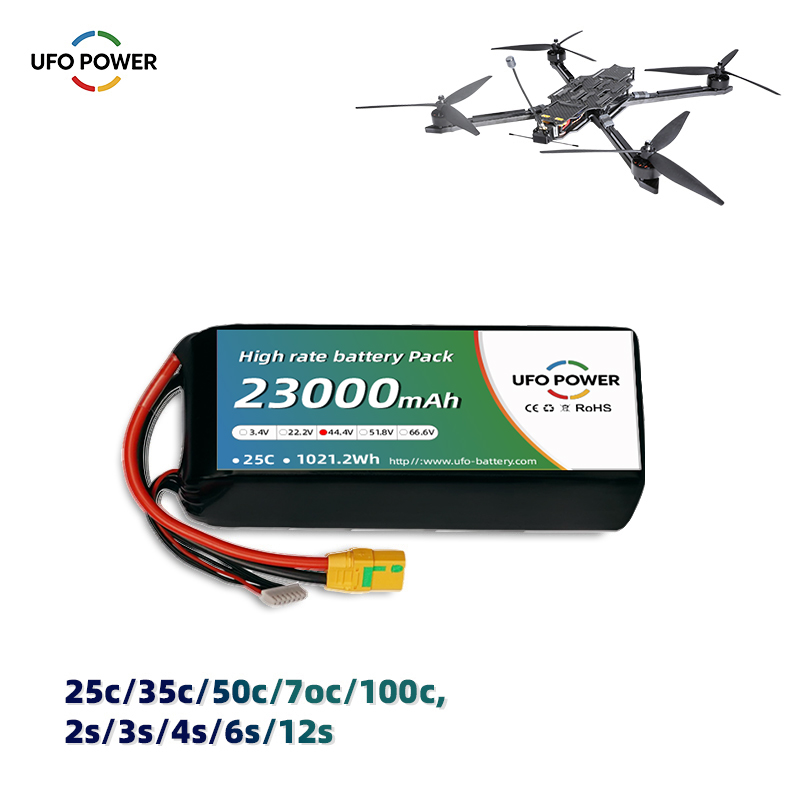

UFO POWER 23000mAh 1021.2Wh 44.2V 25C Semi‑solid‑state FPV Drone Battery (12S, 300Wh/kg)
UFO POWER 23000mAh 1021.2Wh high‑rate Semi‑solid‑state FPV Drone Battery featuring 44.2V (12S) configuration with advanced Semi‑solid LiNiMnCoO₂ (NMC) lithium technology. Delivers an impressive 25C continuous high‑rate discharge with exceptional 300Wh/kg energy density and 500 charge‑discharge cycles across a wide ‑20°C to 60°C operating range. Lightweight design at only 760g with compact 32×66×172mm dimensions, engineered specifically for 18‑inch FPV drones, heavy‑lift UAVs, and demanding high‑drain drone applications.
Product Details
The UFO POWER 23000mAh 1021.2Wh high‑rate FPV drone battery utilizes advanced Semi‑solid LiNiMnCoO₂ (NMC) chemistry for exceptional 25C discharge performance, enhanced safety, and stable power delivery. This 12S (44.2V nominal, 12 cells in series) high‑voltage configuration delivers robust power output for professional 18‑inch FPV racing, freestyle, long‑range FPV missions, and demanding high‑drain applications. Each unit is engineered for 500 charge‑discharge cycles of consistent capacity retention. The battery measures only 32×66×172mm and weighs just 760g, with a wide ‑20°C to 60°C operating temperature range. This ultra‑lightweight high‑rate battery combines high capacity with 25C discharge capability, making it ideal for FPV applications requiring both extended flight time and high power output.
Technical Specifications
BrandUFO POWER
Model NumberUHV‑23000mAh‑Semi‑solid‑state Battery
Battery TypeSemi‑solid LiNiMnCoO₂ (NMC) High Rate
Cathode MaterialLiNiMnCoO₂ (NMC)
Configuration12S (12 Cells in Series)
Nominal Voltage44.2V (12S)
Nominal Capacity23000mAh / 23Ah
Total Energy1021.2Wh
Discharge Rate25C (High Rate)
Energy Density300Wh/kg
Weight760g ± 30g (~0.76 KG)
Dimensions (L×W×H)32 × 66 × 172 mm
Cycle Life500 Cycles

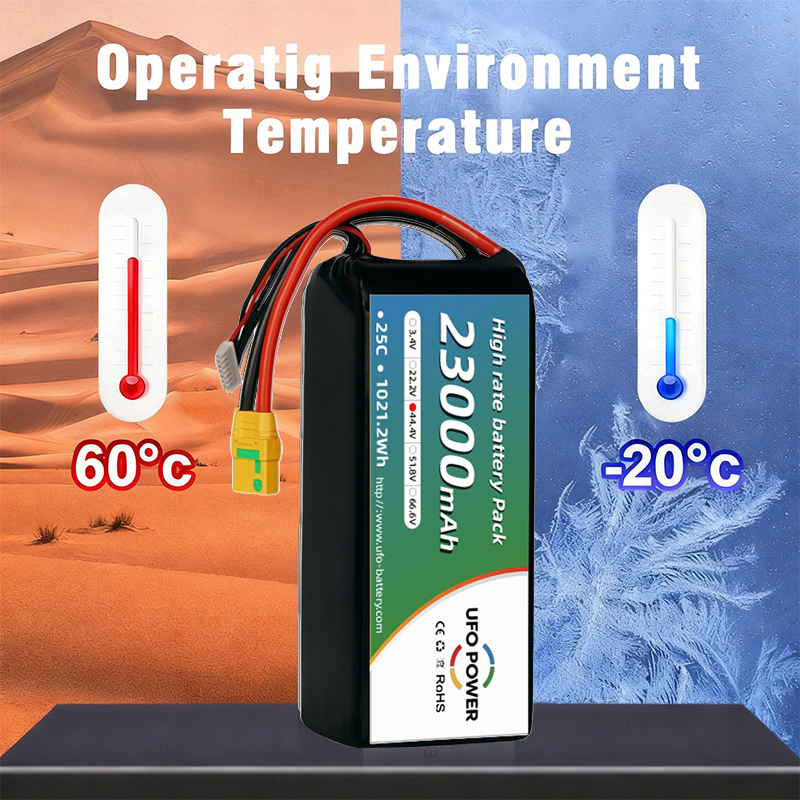

Operating Temperature‑20°C ~ +60°C
Max Load Quantity (cells)12 Cells
ApplicationFPV Drone / Drone / Robot Vacuum Cleaner / 18‑Inch FPV
Place of OriginGuangdong, China

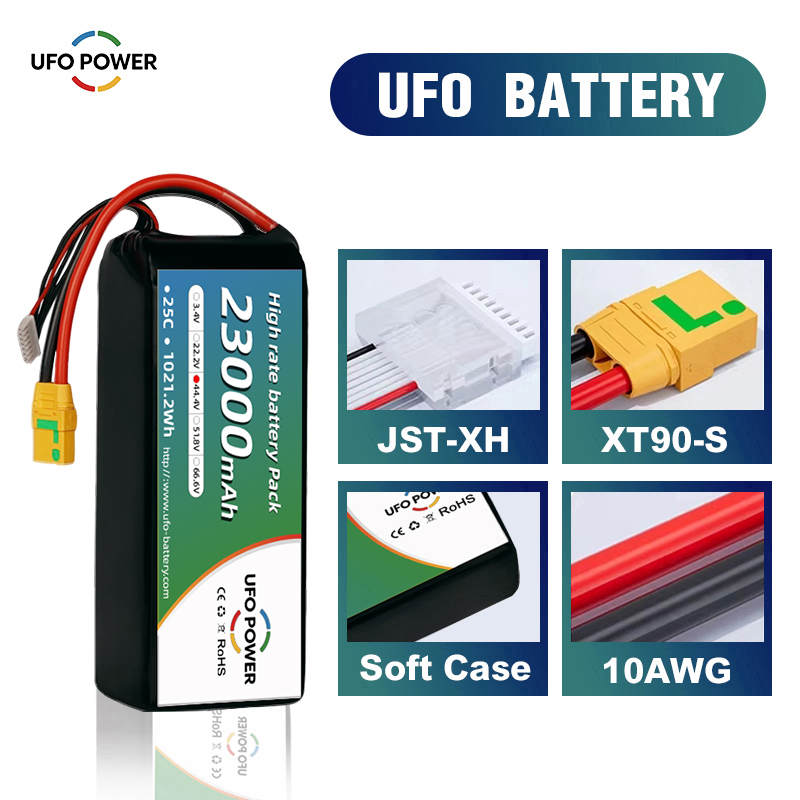

ConnectorXT90S‑F (or custom)
Pricing (FOB)
1‑9 PiecesUS $245.00 / piece
10‑999 PiecesUS $243.00 / piece
≥ 1,000 PiecesUS $239.00 / piece
Lead Time
1‑10 Pieces7 Days
＞ 10 PiecesTo be negotiated
Features
25C High‑Rate DischargeExtreme power for FPV racing and freestyle
300Wh/kg High Energy DensityExtended flight time for FPV missions
12S High Voltage (44.2V)High‑efficiency FPV power delivery
Semi‑solid NMC TechnologyEnhanced safety and thermal stability
1021.2Wh High CapacityLong FPV flight endurance
Ultra‑Lightweight 760gMinimizes FPV payload penalty
CustomizableDrawing, sample, and full customization available

UFO POWER 23000mAh 1021.2Wh 44.2V 25C Semi‑solid‑state FPV Drone Battery (12S, 300Wh/kg)
UFO POWER 23000mAh 1021.2Wh high‑rate Semi‑solid‑state FPV Drone Battery featuring 44.2V (12S) configuration with advanced Semi‑solid LiNiMnCoO₂ (NMC) lithium technology. Delivers an impressive 25C continuous high‑rate discharge with exceptional 300Wh/kg energy density and 500 charge‑discharge cycles across a wide ‑20°C to 60°C operating range. Lightweight design at only 760g with compact 32×66×172mm dimensions, engineered specifically for 18‑inch FPV drones, heavy‑lift UAVs, and demanding high‑drain drone applications.
Product Details
The UFO POWER 23000mAh 1021.2Wh high‑rate FPV drone battery utilizes advanced Semi‑solid LiNiMnCoO₂ (NMC) chemistry for exceptional 25C discharge performance, enhanced safety, and stable power delivery. This 12S (44.2V nominal, 12 cells in series) high‑voltage configuration delivers robust power output for professional 18‑inch FPV racing, freestyle, long‑range FPV missions, and demanding high‑drain applications. Each unit is engineered for 500 charge‑discharge cycles of consistent capacity retention. The battery measures only 32×66×172mm and weighs just 760g, with a wide ‑20°C to 60°C operating temperature range. This ultra‑lightweight high‑rate battery combines high capacity with 25C discharge capability, making it ideal for FPV applications requiring both extended flight time and high power output.
Technical Specifications
BrandUFO POWER
Model NumberUHV‑23000mAh‑Semi‑solid‑state Battery
Battery TypeSemi‑solid LiNiMnCoO₂ (NMC) High Rate
Cathode MaterialLiNiMnCoO₂ (NMC)
Configuration12S (12 Cells in Series)
Nominal Voltage44.2V (12S)
Nominal Capacity23000mAh / 23Ah
Total Energy1021.2Wh
Discharge Rate25C (High Rate)
Energy Density300Wh/kg
Weight760g ± 30g (~0.76 KG)
Dimensions (L×W×H)32 × 66 × 172 mm
Cycle Life500 Cycles
Operating Temperature‑20°C ~ +60°C
Max Load Quantity (cells)12 Cells
ApplicationFPV Drone / Drone / Robot Vacuum Cleaner / 18‑Inch FPV
Place of OriginGuangdong, China
ConnectorXT90S‑F (or custom)
Pricing (FOB)
1‑9 PiecesUS $245.00 / piece
10‑999 PiecesUS $243.00 / piece
≥ 1,000 PiecesUS $239.00 / piece
Lead Time
1‑10 Pieces7 Days
＞ 10 PiecesTo be negotiated
Features
25C High‑Rate DischargeExtreme power for FPV racing and freestyle
300Wh/kg High Energy DensityExtended flight time for FPV missions
12S High Voltage (44.2V)High‑efficiency FPV power delivery
Semi‑solid NMC TechnologyEnhanced safety and thermal stability
1021.2Wh High CapacityLong FPV flight endurance
Ultra‑Lightweight 760gMinimizes FPV payload penalty
CustomizableDrawing, sample, and full customization available
